WNMG080408

Link Copied

30 piece (MOQ)

Edit

Business Type	Exporter, Supplier, Retailer, Trader, Distributor
Brand Name	VARIOUS BRANDS
Material	CARBIDE
Surface Finishing	Coated
Click to view more

Product Details

Shape

TRIGON (WNMG)

Color

Metallic

Condition

New

Application

EXTERNAL TURNING

Product Code

23242105

Delivery Time

5 DAYS

Packaging Details

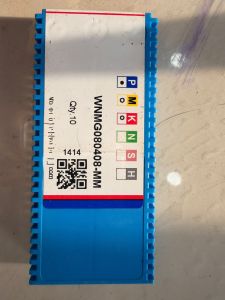

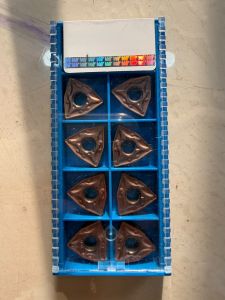

### Packing Details

* **Packing Type:** Original manufacturer plastic box
* **Quantity per Box:** 10 inserts (may vary depending on product model)
* **Inner Packing:** Individual precision slots to protect cutting edges from damage during storage and transportation
* **Outer Packing:** Durable corrugated carton with protective cushioning for secure shipping
* **Packaging:** Genuine factory-sealed manufacturer packaging
* **Condition:** Brand New

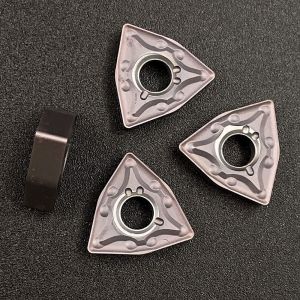

The WNMG080408 is a premium 80° trigon (triangular) negative carbide turning insert designed for medium to rough turning applications. Its double-sided geometry provides six usable cutting edges, delivering excellent tool economy and long service life. The insert offers outstanding chip control, high edge strength, and stable machining performance, making it suitable for CNC lathes and conventional turning machines. It is widely used for machining steel, stainless steel, cast iron, and alloy steels.

Technical Specifications

SpecificationDetails

Product Type	Indexable Turning Insert
Model	WNMG080408
Material	Cemented Carbide
Shape	Trigon (80°)
Insert Type	Negative, Double-Sided
Hand	Neutral
Inscribed Circle (IC)	12.7 mm
Cutting Edge Length (L)	8.7 mm
Thickness (S)	4.76 mm
Corner Radius (RE)	0.8 mm
Hole Diameter (D1)	5.16 mm
Included Angle	80°
Number of Cutting Edges	6
Mounting Style	Screw Clamp
Weight (1 Piece)	Approx. 9 g
Color	Grade Dependent
Pack Size	Usually 10 Pieces
