- GST NO. : 22AJXPC2620C1ZR
- View Mobile Number
| Business Type | Exporter, Supplier, Retailer, Trader, Distributor |
| Brand Name | XCUT |
| Material | CARBIDE |
| Finishing | Coated |
| Click to view more | |
Product Details
Color
Metallic
Condition
New
Size
16 MM IC
Country of Origin
India
Type
Milling Inserts
Product Code
23242105
Delivery Time
5 DAYS
Packaging Details
### Packing Details
* **Packing Type:** Original manufacturer plastic box
* **Quantity per Box:** 10 inserts (may vary depending on product model)
* **Inner Packing:** Individual precision slots to protect cutting edges from damage during storage and transportation
* **Outer Packing:** Durable corrugated carton with protective cushioning for secure shipping
* **Packaging:** Genuine factory-sealed manufacturer packaging
* **Condition:** Brand New
* **Packing Type:** Original manufacturer plastic box
* **Quantity per Box:** 10 inserts (may vary depending on product model)
* **Inner Packing:** Individual precision slots to protect cutting edges from damage during storage and transportation
* **Outer Packing:** Durable corrugated carton with protective cushioning for secure shipping
* **Packaging:** Genuine factory-sealed manufacturer packaging
* **Condition:** Brand New

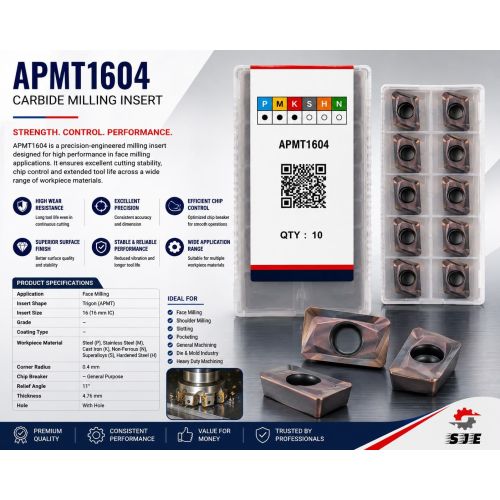

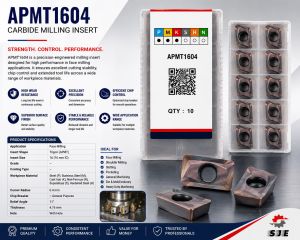

The APMT1604 is a high-performance positive rake carbide milling insert designed for 90° shoulder milling, face milling, slot milling, and profiling operations. It is widely used with BAP400R and other APMT1604-compatible milling cutters, delivering excellent chip control, reduced cutting forces, and superior surface finish. Suitable for CNC machining centers and conventional milling machines, it offers high productivity and long tool life across a wide range of materials.
Technical Specifications
| Product Type | Indexable Milling Insert |
| Model | APMT1604 |
| Material | Cemented Carbide |
| Shape | Parallelogram |
| Insert Type | Positive, Single-Sided |
| Clearance Angle | 11° |
| Length (L) | 16.5–17.19 mm |
| Width (W) | 9.525 mm |
| Thickness (S) | 4.76 mm |
| Corner Radius (RE) | 0.8 mm (varies by suffix) |
| Hole Diameter | 4.4 mm |
| Number of Cutting Edges | 2 |
| Mounting Style | Screw Clamp |
| Weight (1 Piece) | Approx. 6 g |
| Color | Grade Dependent |
| Pack Size | Usually 10 Pieces |
Features
- Premium cemented carbide substrate
- Positive rake cutting geometry
- Excellent wear resistance
- Low cutting forces
- Superior chip evacuation
- High machining accuracy
- Excellent surface finish
- Long tool life
- Suitable for high-speed machining
- Compatible with BAP400R and other APMT1604 milling cutters
- Suitable for dry and coolant-assisted machining
- Stable performance in continuous cutting operations
Applications
- Face Milling
- 90° Shoulder Milling
- Slot Milling
- Profile Milling
- Pocket Milling
- CNC Milling
- General Milling
- Semi-Finishing
- Finishing
Suitable Materials
- Carbon Steel
- Alloy Steel
- Stainless Steel
- Cast Iron
- Tool Steel
- Non-Ferrous Metals (grade dependent)
Advantages
- Excellent chip control
- High metal removal rate
- Reduced machining time
- Improved surface finish
- Lower tooling costs
- Long insert life
- Stable machining performance
- High productivity
Corrosion Resistance
- Good corrosion resistance during storage
- Excellent wear resistance
- Coated grades provide enhanced oxidation and corrosion resistance
- Suitable for dry and coolant-assisted machining
