| Business Type | Exporter, Supplier, Retailer, Trader, Distributor |
| Brand Name | DIAEDGE |
| Material | Carbide |
| Surface Finishing | Coated |
| Click to view more | |
Product Details
Shape
Square,SOMT
Color
Metallic
Condition
New
Application
MILLING
Feature
Accuracy, Titanium Coated
Type
Carbide Inserts
Thickness
3.97MM
Country of Origin
India
Product Code
23242105
Delivery Time
5 DAYS
Packaging Details
### Packing Details
* **Packing Type:** Original manufacturer plastic box
* **Quantity per Box:** 10 inserts (may vary depending on product model)
* **Inner Packing:** Individual precision slots to protect cutting edges from damage during storage and transportation
* **Outer Packing:** Durable corrugated carton with protective cushioning for secure shipping
* **Packaging:** Genuine factory-sealed manufacturer packaging
* **Condition:** Brand New
* **Packing Type:** Original manufacturer plastic box
* **Quantity per Box:** 10 inserts (may vary depending on product model)
* **Inner Packing:** Individual precision slots to protect cutting edges from damage during storage and transportation
* **Outer Packing:** Durable corrugated carton with protective cushioning for secure shipping
* **Packaging:** Genuine factory-sealed manufacturer packaging
* **Condition:** Brand New

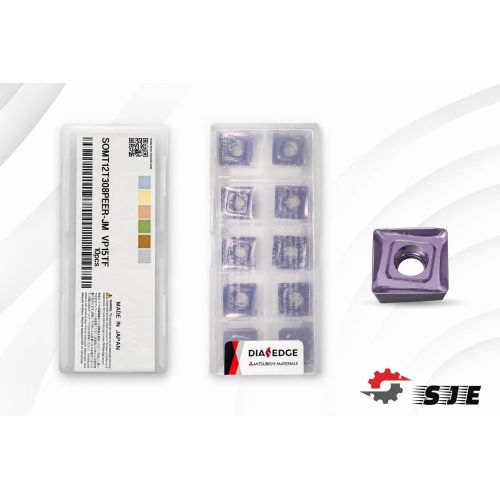

TheMitsubishi SOMT12T308PEER-JM VP15TFis a premium square indexable carbide milling insert designed forASX400 shoulder milling cutters. Featuring Mitsubishi's advancedVP15TF PVD coatingandJM chipbreaker, it delivers excellent wear resistance, stable cutting performance, and extended tool life in light to semi-heavy milling operations. It is ideal for machining stainless steel, cast iron, hardened steel, and heat-resistant alloys with high accuracy and superior surface finish.
Technical Specifications
| Brand | Mitsubishi Materials |
| Model | SOMT12T308PEER-JM VP15TF |
| Insert Type | Indexable Milling Insert |
| Insert Shape | Square |
| Grade | VP15TF |
| Chipbreaker | JM |
| Coating | PVD (AlTiN-based VP15TF) |
| Material | Cemented Carbide |
| Hand | Right |
| Inscribed Circle (IC) | 12.7 mm |
| Thickness (S) | 3.97 mm |
| Corner Radius (RE) | 0.8 mm |
| Cutting Edge Width (BS) | 1.4 mm |
| Hole Diameter | 4.3 mm |
| Lead Angle | 14° |
| CNC Size | 4 |
| Insert Mounting | Screw-on |
| Number of Cutting Edges | 4 |
| Weight (1 Piece) | Approx. 4.5–5 g |
| Color | Bronze/Gold PVD Coated |
Product Features
- Premium Mitsubishi carbide substrate
- Advanced VP15TF PVD coating for long tool life
- JM chipbreaker for smooth chip evacuation
- Excellent wear, heat, and oxidation resistance
- Stable cutting under light to semi-heavy loads
- Low cutting forces and reduced vibration
- High dimensional accuracy
- Suitable for dry and wet machining
- Four usable cutting edges for economical operation
- High-quality surface finish
Applications
- Face milling
- 90° shoulder milling
- General-purpose CNC milling
- Semi-finishing
- Light roughing
- Precision machining
- Production machining
- Multi-function milling
Suitable for:
- Carbon steel
- Alloy steel
- Stainless steel
- Cast iron
- Hardened steel
- Heat-resistant alloys
- Titanium alloys (recommended cutting conditions)
Compatible with Mitsubishi ASX400 series milling cutters.
Corrosion Resistance
The VP15TF PVD coating provides:
- Good corrosion resistance during storage
- Excellent oxidation resistance
- High heat resistance
- Superior wear resistance
- Protection against coolant-related surface degradation
Advantages
- Longer tool life
- Excellent chip control
- Improved productivity
- Reduced machining costs
- Stable cutting performance
- Superior surface finish
- High reliability in CNC production
Industries
- Automotive
- Aerospace
- Die & Mold
- Heavy Engineering
- General Manufacturing
- Precision Engineering
- Power Generation
- Oil & Gas
- Metal Fabrication
