| Business Type | Exporter, Supplier, Retailer, Trader, Distributor |
| Brand Name | WINTECH |
| Material | CARBIDE |
| Finishing | Coated |
| Click to view more | |
Product Details
Color
Metallic
Condition
New
Type
NEGATIVE
Application
GENERAL TURNING
Product Code
23242105
Delivery Time
5 DAYS
Packaging Details
### Packing Details

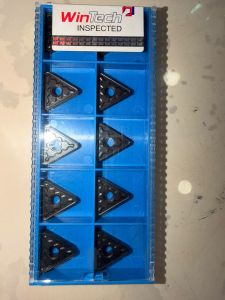

* **Packing Type:** Original manufacturer plastic box
* **Quantity per Box:** 10 inserts (may vary depending on product model)
* **Inner Packing:** Individual precision slots to protect cutting edges from damage during storage and transportation
* **Outer Packing:** Durable corrugated carton with protective cushioning for secure shipping
* **Packaging:** Genuine factory-sealed manufacturer packaging
* **Condition:** Brand New
* **Packing Type:** Original manufacturer plastic box
* **Quantity per Box:** 10 inserts (may vary depending on product model)
* **Inner Packing:** Individual precision slots to protect cutting edges from damage during storage and transportation
* **Outer Packing:** Durable corrugated carton with protective cushioning for secure shipping
* **Packaging:** Genuine factory-sealed manufacturer packaging
* **Condition:** Brand New

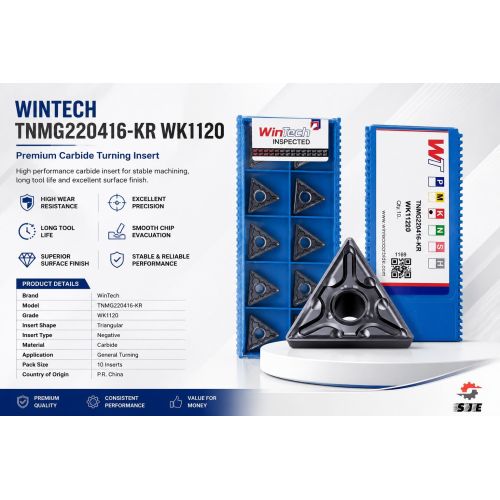

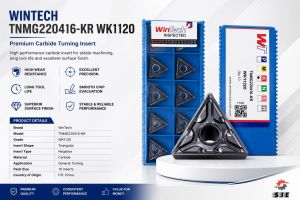

The TNMG220416-KR is a premium double-sided triangular carbide turning insert designed for medium to rough turning operations. Featuring a 60° triangular negative geometry and KR chipbreaker, it provides excellent chip control, high edge strength, and stable machining performance. The insert is suitable for external turning, facing, profiling, and general-purpose machining on CNC lathes and conventional turning machines. It is commonly used for machining steel, stainless steel, cast iron, and alloy steels.
Technical Specifications
| Product Type | Indexable Turning Insert |
| Model | TNMG220416-KR |
| Material | Cemented Carbide |
| Shape | Triangular (60°) |
| Insert Type | Negative, Double-Sided |
| Chipbreaker | KR |
| Hand | Neutral |
| Inscribed Circle (IC) | 12.7 mm |
| Insert Size | 22 |
| Thickness (S) | 4.76 mm |
| Corner Radius (RE) | 1.6 mm |
| Hole Diameter (D1) | 5.16 mm |
| Included Angle | 60° |
| Number of Cutting Edges | 6 |
| Mounting Style | Screw Clamp |
| Weight (1 Piece) | Approx. 11.5 g |
| Color | Grade Dependent |
| Pack Size | Usually 10 Pieces |
The weight is approximately 11.5 g per insert, based on published specifications for TNMG220416 inserts of the same ISO size.
Features
- Double-sided triangular insert
- Six usable cutting edges
- KR chipbreaker for efficient chip control
- High wear resistance
- Excellent edge strength
- Stable machining performance
- Suitable for medium and rough turning
- High productivity
- Long tool life
- Compatible with ISO TNMG tool holders
Applications
- External Turning
- Internal Turning
- Facing
- Rough Turning
- Semi-Finishing
- Profile Turning
- CNC Turning
- General Machining
Suitable Materials
- Carbon Steel
- Alloy Steel
- Stainless Steel
- Cast Iron
- Tool Steel
Advantages
- Excellent chip evacuation
- Reduced cutting forces
- Superior dimensional accuracy
- Longer insert life
- Cost-effective due to six cutting edges
- Reliable performance in continuous and interrupted cuts
Corrosion Resistance
- Good corrosion resistance during storage
- Excellent oxidation resistance (coated grades)
- High wear resistance
- Suitable for dry and wet machining depending on the insert grade
