- GST NO. : 22AJXPC2620C1ZR
- View Mobile Number
| Business Type | Exporter, Supplier, Retailer, Trader, Distributor |
| Brand Name | DIAEDGE |
| Material | CARBIDE |
| Finishing | Coated |
| Click to view more | |
Product Details
Color
Metallic
Condition
New
Size
15
WORKPIECE MATERIAL
P/M/K/N
CORNER RADIUS
0.4MM
SHAPE
SQUARE
Product Code
23242105
Delivery Time
5 DAYS
Packaging Details
### Packing Details
* **Packing Type:** Original manufacturer plastic box
* **Quantity per Box:** 10 inserts (may vary depending on product model)
* **Inner Packing:** Individual precision slots to protect cutting edges from damage during storage and transportation
* **Outer Packing:** Durable corrugated carton with protective cushioning for secure shipping
* **Packaging:** Genuine factory-sealed manufacturer packaging
* **Condition:** Brand New
* **Packing Type:** Original manufacturer plastic box
* **Quantity per Box:** 10 inserts (may vary depending on product model)
* **Inner Packing:** Individual precision slots to protect cutting edges from damage during storage and transportation
* **Outer Packing:** Durable corrugated carton with protective cushioning for secure shipping
* **Packaging:** Genuine factory-sealed manufacturer packaging
* **Condition:** Brand New

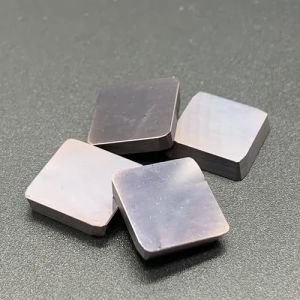

TheSPKN1504is a premiumsquare indexable carbide milling insertdesigned for face milling and high-depth-of-cut machining operations. Featuring apositive cutting geometry, it delivers excellent cutting performance, reduced cutting forces, and superior surface finish. The insert is ideal for CNC milling machines and indexable face milling cutters, making it suitable for machining steel, stainless steel, cast iron, and alloy steels.
Technical Specifications
| Product Type | Indexable Milling Insert |
| Model | SPKN1504 |
| Material | Cemented Carbide |
| Shape | Square |
| Insert Type | Positive, Single-Sided |
| Inscribed Circle (IC) | 15.88 mm |
| Thickness (S) | 4.76 mm |
| Corner Radius (RE) | 1.25 mm (varies by suffix/grade) |
| Included Angle | 90° |
| Clearance Angle | 11° |
| Number of Cutting Edges | 4 |
| Maximum Depth of Cut | Up to 8 mm |
| Mounting Style | Mechanical Clamp |
| Weight (1 Piece) | Approx. 15–18 g |
| Color | Grade Dependent |
| Pack Size | Usually 10 Pieces |
*The ISO SPKN1504 size has an inscribed circle of 15.88 mm, thickness of 4.76 mm, and 4 cutting edges. Actual corner radius and coating depend on the insert suffix and grade.
Features
- Premium cemented carbide construction
- Square positive insert design
- Four usable cutting edges
- Excellent wear resistance
- High edge strength
- Low cutting forces
- Stable machining performance
- Excellent chip control
- Long tool life
- High productivity
- Suitable for dry and wet machining
- Compatible with indexable face milling cutters
Applications
- Face Milling
- Shoulder Milling
- High Depth-of-Cut Milling
- CNC Milling
- General Milling
- Roughing
- Semi-Finishing
- Production Machining
Suitable Materials
- Carbon Steel
- Alloy Steel
- Stainless Steel
- Cast Iron
- Tool Steel
- Super Alloys (grade dependent)
Advantages
- High metal removal rate
- Excellent dimensional accuracy
- Superior surface finish
- Extended tool life
- Reduced machining costs
- Stable cutting performance
- Reliable operation in heavy-duty milling
- Increased machining productivity
Corrosion Resistance
- Good corrosion resistance during storage
- Excellent wear resistance
- Coated grades offer enhanced oxidation and corrosion resistance
- Suitable for dry and coolant-assisted machining
SEO Keywords
- SPKN1504
- SPKN 1504
- SPKN1504 Carbide Insert
- SPKN Milling Insert
- Square Milling Insert
- Carbide Milling Insert
- Indexable Milling Insert
- Face Milling Insert
- CNC Milling Insert
- Positive Milling Insert
- Square Carbide Insert
- Indexable Face Milling Insert
- CNC Cutting Insert
- Carbide Cutter Insert
- Steel Milling Insert
Looking for "SPKN1504" ?
