30 piece (MOQ)
| Business Type | Exporter, Supplier, Retailer, Trader |
| Product Code | 23242105 |
| Delivery Time | 5 DAYS |

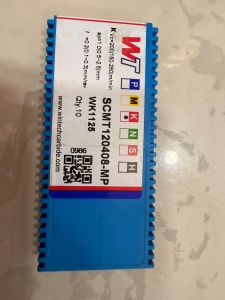

| Packaging Details | ### Packing Details * **Packing Type:** Original manufacturer plastic box * **Quantity per Box:** 10 inserts (may vary depending on product model) * **Inner Packing:** Individual precision slots to protect cutting edges from damage during storage and transportation * **Outer Packing:** Durable corrugated carton with protective cushioning for secure shipping * **Packaging:** Genuine factory-sealed manufacturer packaging * **Condition:** Brand New |

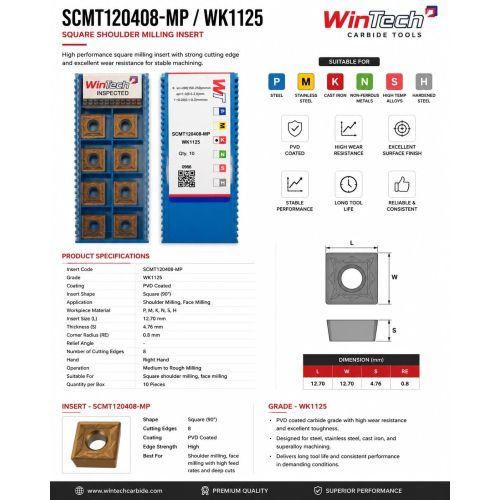

TheSCMT120408MPis a high-performance90° square positive carbide turning insertdesigned for finishing and medium turning operations. Featuring anMP chipbreaker, it provides excellent chip control, low cutting forces, and superior surface finish. The positive 7° clearance angle ensures smooth cutting action, making it ideal for CNC lathes and conventional turning machines. It is widely used for machining steel, stainless steel, cast iron, and alloy steels.
Technical Specifications
| Product Type | Indexable Turning Insert |
| Model | SCMT120408MP |
| Material | Cemented Carbide |
| Shape | Square |
| Insert Type | Positive, Single-Sided |
| Chipbreaker | MP |
| Clearance Angle | 7° |
| Hand | Neutral |
| Inscribed Circle (IC) | 12.7 mm |
| Cutting Edge Length | 12.7 mm |
| Thickness (S) | 4.76 mm |
| Corner Radius (RE) | 0.8 mm |
| Hole Diameter (D1) | 5.5 mm |
| Included Angle | 90° |
| Number of Cutting Edges | 4 |
| Mounting Style | Screw Clamp |
| Weight (1 Piece) | Approx. 7 g |
| Color | Grade Dependent |
| Pack Size | Usually 10 Pieces |
Features
- Premium cemented carbide substrate
- Positive cutting geometry
- MP chipbreaker for efficient chip control
- Excellent wear resistance
- Reduced cutting forces
- Superior surface finish
- High dimensional accuracy
- Long tool life
- Stable machining performance
- Four usable cutting edges
- Compatible with ISO SCMT tool holders
- Suitable for dry and coolant-assisted machining
Applications
- External Turning
- Internal Turning
- Finish Turning
- Medium Turning
- Facing
- Profile Turning
- CNC Turning
- Precision Machining
Suitable Materials
- Carbon Steel
- Alloy Steel
- Stainless Steel
- Cast Iron
- Tool Steel
Advantages
- Excellent chip evacuation
- Low cutting resistance
- High wear resistance
- Improved surface finish
- Longer insert life
- Reduced tooling costs
- Consistent machining accuracy
- High productivity
Corrosion Resistance
- Good corrosion resistance during storage
- Excellent wear resistance
- Coated grades provide enhanced oxidation and corrosion resistance
- Suitable for both dry and coolant-assisted machining
SEO Keywords
- SCMT120408MP
- SCMT 120408 MP
- SCMT120408 Carbide Insert
- SCMT Turning Insert
- Carbide Turning Insert
- Square Turning Insert
- Positive Turning Insert
- MP Chipbreaker Insert
- CNC Turning Insert
- Indexable Turning Insert
- Carbide Lathe Insert
- External Turning Insert
- Internal Turning Insert
- Finish Turning Insert
- Medium Turning Insert
- Facing Insert
- Steel Turning Insert
- Stainless Steel Turning Insert
- Cast Iron Turning Insert
- Precision Turning Insert
Looking for "SCMT120408-MP" ?
