- GST NO. : 22AJXPC2620C1ZR
- View Mobile Number
| Business Type | Exporter, Supplier, Retailer, Trader, Distributor |
| Size | 15 |
| Brand Name | WINTECH |
| Shape | DIAMOND |
| Click to view more | |
Product Details
Grade
WK1020
Coating
CVD TICN+AL2O3+TIN ETC.
Material
CARBIDE
Finishing
Coated
Product Code
23242105
Delivery Time
5 DAYS
Packaging Details
### Packing Details

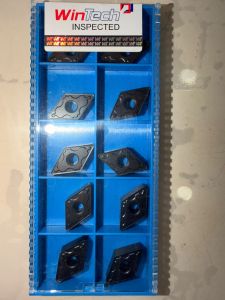

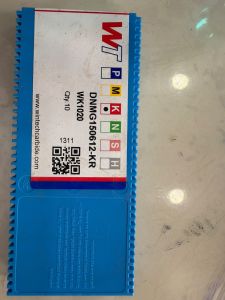

* **Packing Type:** Original manufacturer plastic box
* **Quantity per Box:** 10 inserts (may vary depending on product model)
* **Inner Packing:** Individual precision slots to protect cutting edges from damage during storage and transportation
* **Outer Packing:** Durable corrugated carton with protective cushioning for secure shipping
* **Packaging:** Genuine factory-sealed manufacturer packaging
* **Condition:** Brand New
* **Packing Type:** Original manufacturer plastic box
* **Quantity per Box:** 10 inserts (may vary depending on product model)
* **Inner Packing:** Individual precision slots to protect cutting edges from damage during storage and transportation
* **Outer Packing:** Durable corrugated carton with protective cushioning for secure shipping
* **Packaging:** Genuine factory-sealed manufacturer packaging
* **Condition:** Brand New

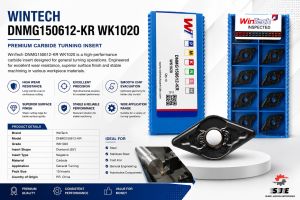

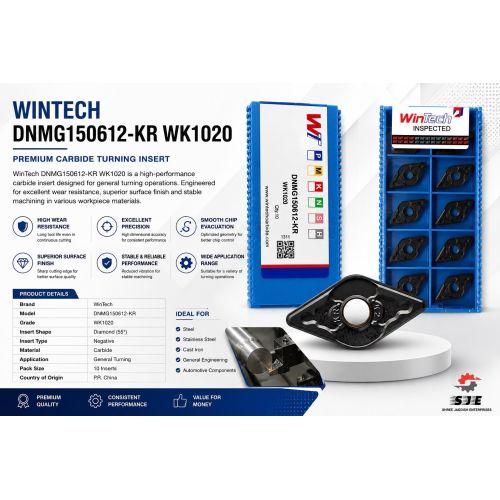

The DNMG150612-KR is a high-performance 55° diamond-shaped negative carbide turning insert designed for medium to rough turning applications. Its KR chipbreaker provides excellent chip control, reduced cutting forces, and stable machining performance. The double-sided design offers six usable cutting edges, making it a cost-effective solution for CNC lathes and conventional turning machines. It is suitable for machining steel, stainless steel, cast iron, and alloy steels.
Technical Specifications
| Product Type | Indexable Turning Insert |
| Model | DNMG150612-KR |
| Material | Cemented Carbide |
| Shape | 55° Diamond (Rhombic) |
| Insert Type | Negative, Double-Sided |
| Chipbreaker | KR |
| Hand | Neutral |
| Inscribed Circle (IC) | 12.7 mm |
| Cutting Edge Length | 15.5 mm |
| Thickness (S) | 6.35 mm |
| Corner Radius (RE) | 1.2 mm |
| Hole Diameter (D1) | 5.16 mm |
| Included Angle | 55° |
| Number of Cutting Edges | 6 |
| Mounting Style | Screw Clamp |
| Weight (1 Piece) | Approx. 18 g |
| Color | Grade Dependent |
| Pack Size | Usually 10 Pieces |
Dimensions follow the ISO DNMG150612 standard.
Features
- Double-sided design with six cutting edges
- KR chipbreaker for efficient chip control
- High wear resistance
- Excellent edge strength
- Stable machining performance
- Suitable for medium and rough turning
- Long tool life
- High dimensional accuracy
- Low cutting forces
- Compatible with ISO DNMG tool holders
- Suitable for dry and wet machining
Applications
- External Turning
- Internal Turning
- Facing
- Rough Turning
- Semi-Finishing
- Profile Turning
- CNC Turning
- General Machining
- Heavy-Duty Metal Cutting
Suitable Materials
- Carbon Steel
- Alloy Steel
- Stainless Steel
- Cast Iron
- Tool Steel
- Hardened Steel
Advantages
- Excellent chip evacuation
- Strong cutting edge for heavy machining
- Improved machining efficiency
- Longer insert life
- Reduced tooling costs
- Reliable performance in continuous and interrupted cutting
- High productivity
- Superior dimensional accuracy
Corrosion Resistance
- Good corrosion resistance during storage
- Excellent oxidation resistance (for coated grades)
- High wear resistance
- Performs reliably in both dry and coolant-assisted machining environments.
