| Business Type | Exporter, Supplier, Retailer, Trader, Distributor |
| Size | 11 |
| Type | TURNING INSERT |
| Brand Name | VARIOUS BRANDS |
| Click to view more | |
Product Details
Material
CARBIDE
Application
EXTERNAL TURNING
Product Code
23242105
Delivery Time
5 DAYS
Packaging Details
### Packing Details

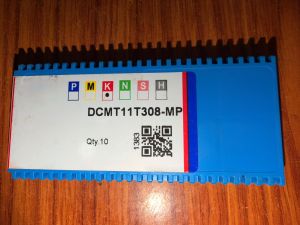

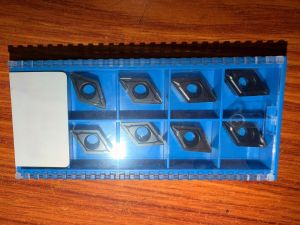

* **Packing Type:** Original manufacturer plastic box
* **Quantity per Box:** 10 inserts (may vary depending on product model)
* **Inner Packing:** Individual precision slots to protect cutting edges from damage during storage and transportation
* **Outer Packing:** Durable corrugated carton with protective cushioning for secure shipping
* **Packaging:** Genuine factory-sealed manufacturer packaging
* **Condition:** Brand New
* **Packing Type:** Original manufacturer plastic box
* **Quantity per Box:** 10 inserts (may vary depending on product model)
* **Inner Packing:** Individual precision slots to protect cutting edges from damage during storage and transportation
* **Outer Packing:** Durable corrugated carton with protective cushioning for secure shipping
* **Packaging:** Genuine factory-sealed manufacturer packaging
* **Condition:** Brand New
- The DCMT11T308 is a premium 55° diamond-shaped positive carbide turning insert designed for precision turning, finishing, and light to medium machining operations. Its positive rake geometry reduces cutting forces while providing excellent chip control, superior surface finish, and high dimensional accuracy. Compatible with ISO DCMT tool holders, it is ideal for CNC lathes and conventional turning machines machining steel, stainless steel, cast iron, and non-ferrous materials.
Technical Specifications
| Product Type | Indexable Turning Insert |
| Model | DCMT11T308 |
| Material | Cemented Carbide |
| Shape | 55° Diamond (Rhombic) |
| Insert Type | Positive, Single-Sided |
| Clearance Angle | 7° |
| Hand | Neutral |
| Inscribed Circle (IC) | 9.525 mm |
| Cutting Edge Length (L) | 11.63 mm |
| Thickness (S) | 3.97 mm |
| Corner Radius (RE) | 0.8 mm |
| Hole Diameter (D1) | 4.4 mm |
| Included Angle | 55° |
| Number of Cutting Edges | 2 |
| Mounting Style | Screw Clamp |
| Weight (1 Piece) | Approx. 4.5 g |
| Color | Grade Dependent |
| Pack Size | Usually 10 Pieces |
The dimensions conform to the ISO DCMT11T308 standard.
Features
- Premium cemented carbide substrate
- Positive rake geometry for low cutting forces
- Excellent chip control
- High wear resistance
- Superior surface finish
- High dimensional accuracy
- Sharp cutting edges
- Stable machining performance
- Long tool life
- Suitable for finishing and semi-finishing
- Compatible with ISO DCMT tool holders
- Suitable for dry and coolant-assisted machining
Applications
- External Turning
- Internal Turning
- Finish Turning
- Semi-Finishing
- Profile Turning
- Facing
- Precision CNC Turning
- General Metal Machining
Suitable Materials
- Carbon Steel
- Alloy Steel
- Stainless Steel
- Cast Iron
- Aluminum Alloys
- Copper Alloys
- Non-Ferrous Metals
Advantages
- Low cutting resistance
- Excellent chip evacuation
- Superior surface finish
- Extended tool life
- High machining accuracy
- Reduced power consumption
- Stable cutting performance
- Increased productivity
Corrosion Resistance
- Good corrosion resistance during storage
- High wear resistance
- Coated grades offer improved oxidation and corrosion resistance
- Suitable for both dry and coolant-assisted machining
