30 piece (MOQ)
| Business Type | Exporter, Supplier, Retailer, Trader |
| Product Code | 23242105 |
| Delivery Time | 5 DAYS |

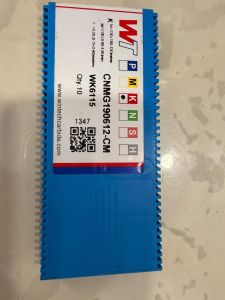

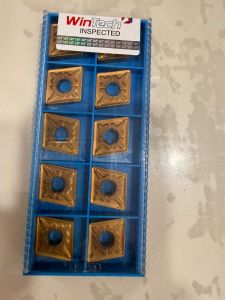

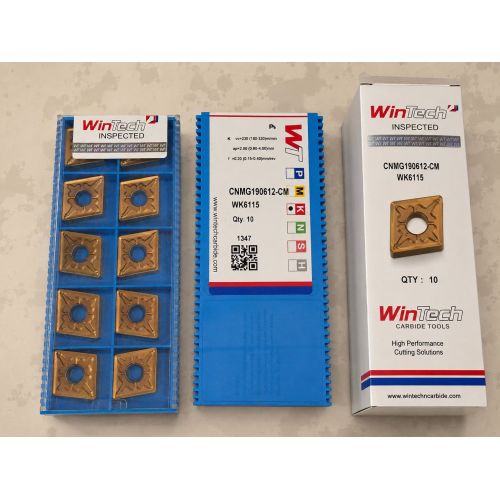

| Packaging Details | ### Packing Details * **Packing Type:** Original manufacturer plastic box * **Quantity per Box:** 10 inserts (may vary depending on product model) * **Inner Packing:** Individual precision slots to protect cutting edges from damage during storage and transportation * **Outer Packing:** Durable corrugated carton with protective cushioning for secure shipping * **Packaging:** Genuine factory-sealed manufacturer packaging * **Condition:** Brand New |
TheCNMG190612CMis a premium80° diamond-shaped negative carbide turning insertdesigned for medium to rough turning applications. Featuring aCM chipbreaker, it provides smooth chip control, excellent edge strength, and stable machining performance in continuous and lightly interrupted cutting. The double-sided design offers four usable cutting edges, making it a cost-effective choice for CNC lathes and conventional turning machines. It is ideal for machining steel, stainless steel, cast iron, and alloy steels.
Technical Specifications
| Product Type | Indexable Turning Insert |
| Model | CNMG190612CM |
| Material | Cemented Carbide |
| Shape | 80° Diamond (Rhombic) |
| Insert Type | Negative, Double-Sided |
| Chipbreaker | CM |
| Hand | Neutral |
| Inscribed Circle (IC) | 19.05 mm |
| Cutting Edge Length (L) | 19.34 mm |
| Thickness (S) | 6.35 mm |
| Corner Radius (RE) | 1.2 mm |
| Hole Diameter (D1) | 7.93 mm |
| Included Angle | 80° |
| Number of Cutting Edges | 4 |
| Mounting Style | Screw Clamp |
| Weight (1 Piece) | Approx. 18–20 g |
| Color | Grade Dependent |
| Pack Size | Usually 10 Pieces |
The dimensions conform to the ISO CNMG190612 standard.
Features
- Premium cemented carbide substrate
- Double-sided negative geometry
- CM chipbreaker for medium machining
- Excellent wear resistance
- High edge strength
- Stable cutting performance
- Efficient chip control
- Long tool life
- High dimensional accuracy
- Suitable for continuous and light interrupted cutting
- Compatible with ISO CNMG tool holders
- Suitable for dry and coolant-assisted machining
Applications
- External Turning
- Internal Turning
- Facing
- Medium Turning
- Rough Turning
- Semi-Finishing
- Profile Turning
- CNC Turning
- General Metal Machining
Suitable Materials
- Carbon Steel
- Alloy Steel
- Stainless Steel
- Cast Iron
- Tool Steel
- Hardened Steel
Advantages
- Excellent chip evacuation
- High wear resistance
- Strong cutting edge
- Longer tool life
- Reduced tooling costs
- Stable machining performance
- Superior dimensional accuracy
- High machining productivity
Corrosion Resistance
- Good corrosion resistance during storage
- Excellent wear resistance
- Coated grades provide enhanced oxidation and corrosion resistance
- Suitable for both dry and coolant-assisted machining
