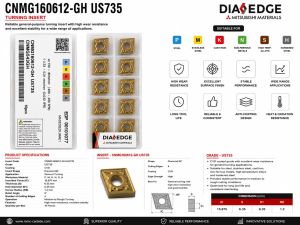

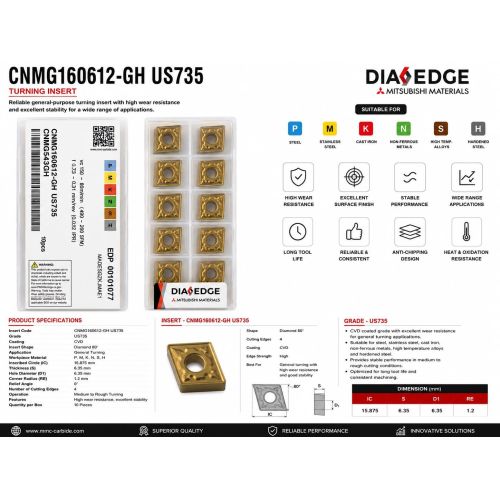

CNMG160612-GH US735

Link Copied

30 piece (MOQ)

Edit

Business Type	Exporter, Supplier, Retailer, Trader, Distributor
Brand Name	DIAEDGE,MITSUBISHI
Shape	80° Diamond (Rhombic)
Grade	US735
Click to view more

Product Details

Coating

CVD Coated

Material

CARBIDE

Finishing

Coated

Color

GOLDEN

Condition

New

Application

Industrial Use

Type

Turning Inserts,Negative, Double-Sided

Thickness

6.35 mm

Country of Origin

MADE IN JAPAN

Product Code

23242105

Delivery Time

5 DAYS

Packaging Details

### Packing Details

* **Packing Type:** Original manufacturer plastic box
* **Quantity per Box:** 10 inserts (may vary depending on product model)
* **Inner Packing:** Individual precision slots to protect cutting edges from damage during storage and transportation
* **Outer Packing:** Durable corrugated carton with protective cushioning for secure shipping
* **Packaging:** Genuine factory-sealed manufacturer packaging
* **Condition:** Brand New

The CNMG160612-GH US735 is a premium 80° diamond-shaped negative carbide turning insert from Mitsubishi Materials, designed for medium to rough machining of stainless steel. Featuring the GH chipbreaker and US735 CVD-coated carbide grade, it provides excellent chip control, high wear resistance, and superior toughness. The double-sided design offers multiple usable cutting edges, making it a cost-effective solution for CNC lathes and high-production turning applications.

Technical Specifications

SpecificationDetails

Brand	Mitsubishi Materials
Model	CNMG160612-GH US735
Product Type	Indexable Turning Insert
Material	Cemented Carbide
Grade	US735
Coating	CVD Coated
Shape	80° Diamond (Rhombic)
Insert Type	Negative, Double-Sided
Chipbreaker	GH
Hand	Neutral
Inscribed Circle (IC)	15.875 mm
Cutting Edge Length (L)	16.12 mm
Thickness (S)	6.35 mm
Corner Radius (RE)	1.2 mm
Hole Diameter (D1)	6.35 mm
Included Angle	80°
Number of Cutting Edges	8
Mounting Style	Screw Clamp
Weight (1 Piece)	Approx. 18 g
Color	Gold/Bronze (CVD Coated)
Pack Size	Usually 10 Pieces
