- GST NO. : 22AJXPC2620C1ZR
- View Mobile Number
| Business Type | Exporter, Supplier, Retailer, Trader, Distributor |
| Size | 12 |
| Brand Name | XCUT |
| Shape | DIAMOND |
| Click to view more | |
Product Details
Grade
XT390C
Coating
CVD TICN+AL2O3+TIN ETC.
Material
CARBIDE
Finishing
Coated
Product Code
23242105
Delivery Time
5 DAYS
Packaging Details
### Packing Details
* **Packing Type:** Original manufacturer plastic box
* **Quantity per Box:** 10 inserts (may vary depending on product model)
* **Inner Packing:** Individual precision slots to protect cutting edges from damage during storage and transportation
* **Outer Packing:** Durable corrugated carton with protective cushioning for secure shipping
* **Packaging:** Genuine factory-sealed manufacturer packaging
* **Condition:** Brand New
* **Packing Type:** Original manufacturer plastic box
* **Quantity per Box:** 10 inserts (may vary depending on product model)
* **Inner Packing:** Individual precision slots to protect cutting edges from damage during storage and transportation
* **Outer Packing:** Durable corrugated carton with protective cushioning for secure shipping
* **Packaging:** Genuine factory-sealed manufacturer packaging
* **Condition:** Brand New

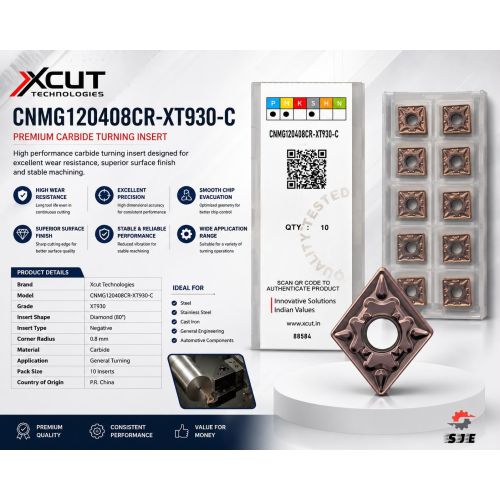

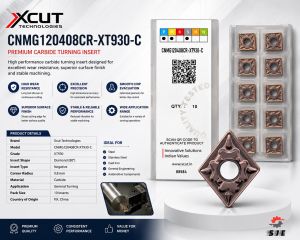

The CNMG120408CR XT930C is a premium 80° diamond-shaped negative carbide turning insert engineered for medium to rough turning operations. Manufactured in the XT930C grade, it provides outstanding wear resistance, toughness, and thermal stability for machining steel, stainless steel, cast iron, and alloy steels. The CR chipbreaker delivers excellent chip control, reduced cutting forces, and stable machining performance, making it ideal for CNC lathes and high-production environments.
Technical Specifications
| Product Type | Indexable Turning Insert |
| Model | CNMG120408CR XT930C |
| Material | Cemented Carbide |
| Grade | XT930C |
| Shape | 80° Diamond (Rhombic) |
| Insert Type | Negative, Double-Sided |
| Chipbreaker | CR |
| Hand | Neutral |
| Inscribed Circle (IC) | 12.7 mm |
| Cutting Edge Length | 12.9 mm |
| Thickness (S) | 4.76 mm |
| Corner Radius (RE) | 0.8 mm |
| Hole Diameter (D1) | 5.16 mm |
| Included Angle | 80° |
| Number of Cutting Edges | 8 |
| Mounting Style | Screw Clamp |
| Weight (1 Piece) | Approx. 9.8 g |
| Color | Gold/Bronze (CVD Coated) |
| Pack Size | Usually 10 Pieces |
Dimensions follow the ISO CNMG120408 standard, and the approximate weight is based on equivalent ISO CNMG120408 inserts.
Features
- Premium cemented carbide substrate
- XT930C wear-resistant grade
- CVD-coated for extended tool life
- CR chipbreaker for efficient chip control
- Double-sided design with eight cutting edges
- Excellent wear and heat resistance
- High edge strength
- Stable machining in continuous and interrupted cuts
- Reduced cutting forces
- Suitable for dry and wet machining
- High productivity and dimensional accuracy
Applications
- External Turning
- Internal Turning
- Facing
- Rough Turning
- Semi-Finishing
- Profile Turning
- CNC Turning
- General Metal Machining
Suitable Materials
- Carbon Steel
- Alloy Steel
- Stainless Steel
- Cast Iron
- Tool Steel
- Hardened Steel
Advantages
- Longer tool life
- Excellent chip evacuation
- High wear resistance
- Consistent machining performance
- Lower tooling costs
- Superior surface finish
- High productivity
- Reliable performance in industrial machining
Corrosion Resistance
- Good corrosion resistance during storage
- Excellent oxidation resistance due to CVD coating
- High wear resistance in demanding machining conditions
- Suitable for coolant-assisted and dry machining
